Introduction

By using the "Remote - SSH" feature in Visual Studio Code (hereafter referred to as VS Code), you can connect via SSH from your local PC to an OCTOPUS frontend node and edit files on the remote system directly in VS Code. When connecting from VS Code, password authentication and two-factor authentication for OCTOPUS are required, just as with a regular SSH login.
After connecting, you can edit files on OCTOPUS in VS Code and perform operations such as compiling programs and submitting jobs from the terminal within VS Code.

Note: This page uses a connection to the HPC frontend (octopus.hpc.osaka-u.ac.jp) as an example.
Note: If you are using OCTOPUS for the first time, please complete the initial setup for two-factor authentication using a regular SSH connection beforehand.

For information on how to log in to OCTOPUS via regular SSH and how to configure two-factor authentication, please refer to the following page.
How to Log In to OCTOPUS
If you are using SQUID, please refer to the following page.
How to Log In to SQUID


Connection Information

The connection destinations are the same as for a regular SSH login.

Server Host Name
HPC Frontend octopus.hpc.osaka-u.ac.jp
Dedicated Frontend voctopusXX.hpc.osaka-u.ac.jp

Note: A separate application is required to use a dedicated frontend. Once your application is approved, you will be notified of the connection destination.

Connection Method SSH
Authentication Method Password Authentication + Two-Factor Authentication
OS Japanese Locale ja_JP.UTF-8



Preparing VS Code

Installing VS Code

Download Visual Studio Code from the official website and install it on your local PC. If you are already using VS Code, this step is not necessary.

Installing the "Remote - SSH" Extension

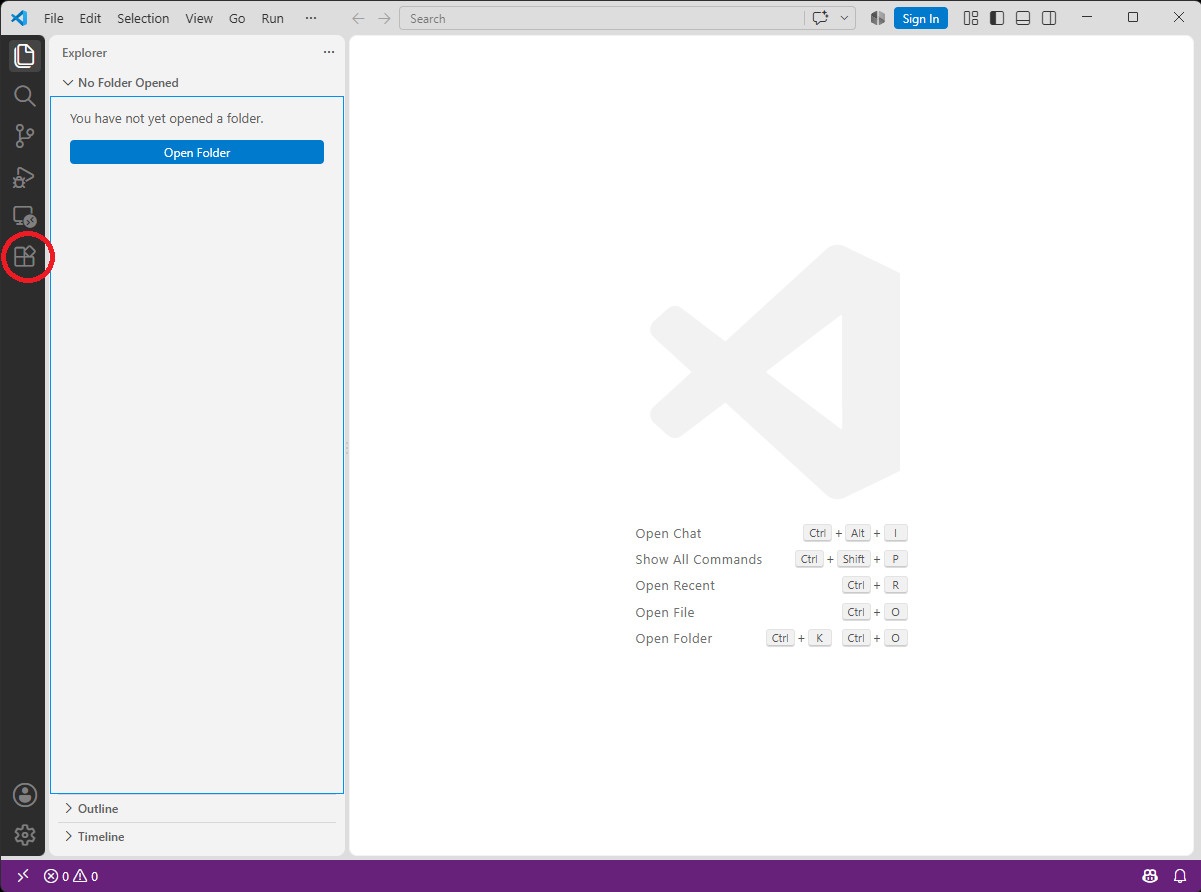

Launch VS Code and click the "Extensions" icon on the left side.

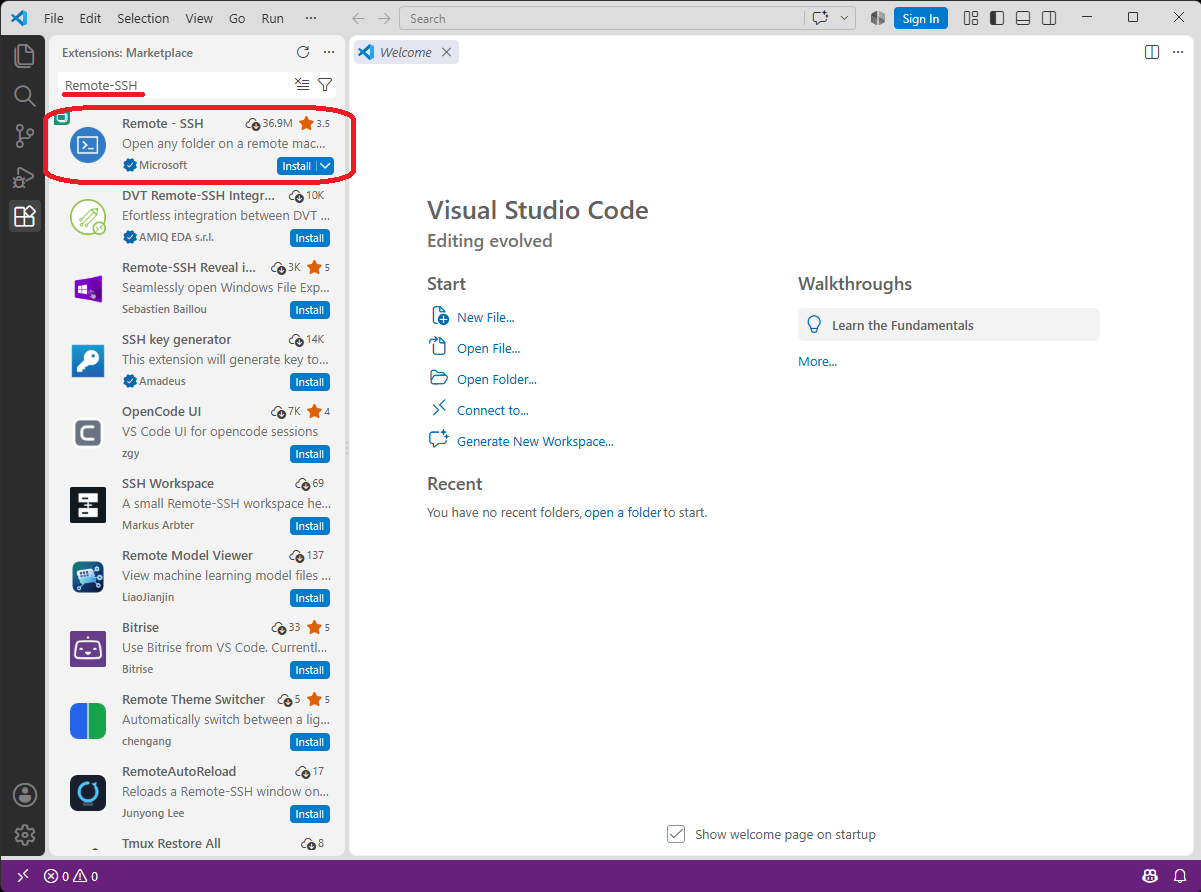

Enter Remote - SSH in the search box. Select "Remote - SSH" provided by Microsoft, then click "Install" to install it. Once the installation is complete, you will be able to connect to SSH servers from VS Code.



Registering an SSH Connection (Optional)

You can enter the host name each time you connect from VS Code, but it is more convenient to register OCTOPUS in your SSH configuration file. The SSH configuration file is usually located in one of the following locations. If the configuration file does not exist, create a new file named "config" in the folder/directory shown below.

OS Configuration File
Windows C:\Users\username\.ssh\config
macOS / Linux ~/.ssh/config

To register the HPC frontend, enter the following:

Host OCTOPUS
HostName octopus.hpc.osaka-u.ac.jp
User USER_ID

For example, if your user ID is "u12345", the configuration would be as follows:

Host OCTOPUS
HostName octopus.hpc.osaka-u.ac.jp
User u12345

The "OCTOPUS" part of "Host OCTOPUS" is the name of the connection destination displayed in VS Code. You can specify any name you prefer.


Connecting to OCTOPUS from VS Code

(1) Start Remote - SSH

Launch VS Code and open the "Command Palette" using one of the following methods.

OS Operation
Windows / Linux Ctrl + Shift + P or F1
macOS Command + Shift + P or F1

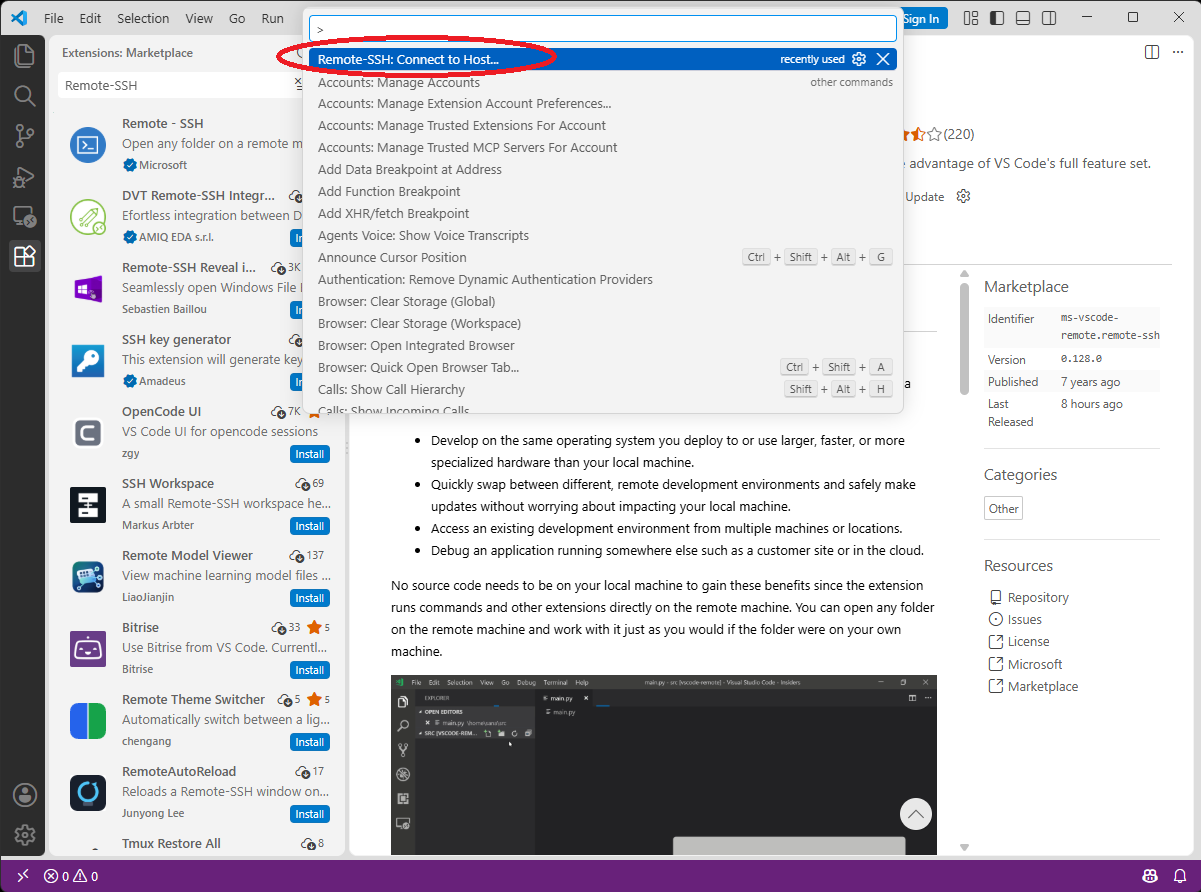

Enter "Remote-SSH: Connect to Host..." in the Command Palette and select it.



(2) Select the Connection Destination

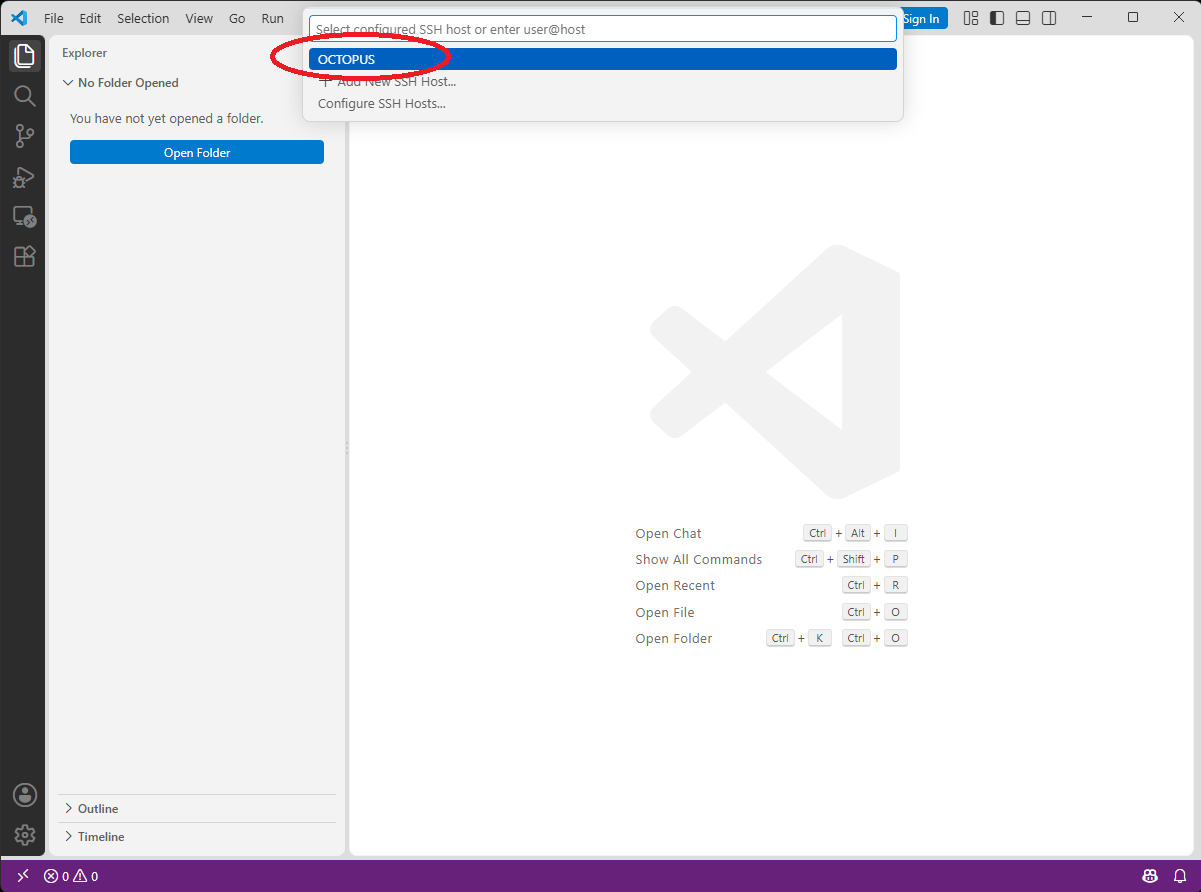

If you registered "Host OCTOPUS" in the SSH configuration file as described in "Registering an SSH Connection" above, "OCTOPUS" will appear in the list of connection destinations. Select it.

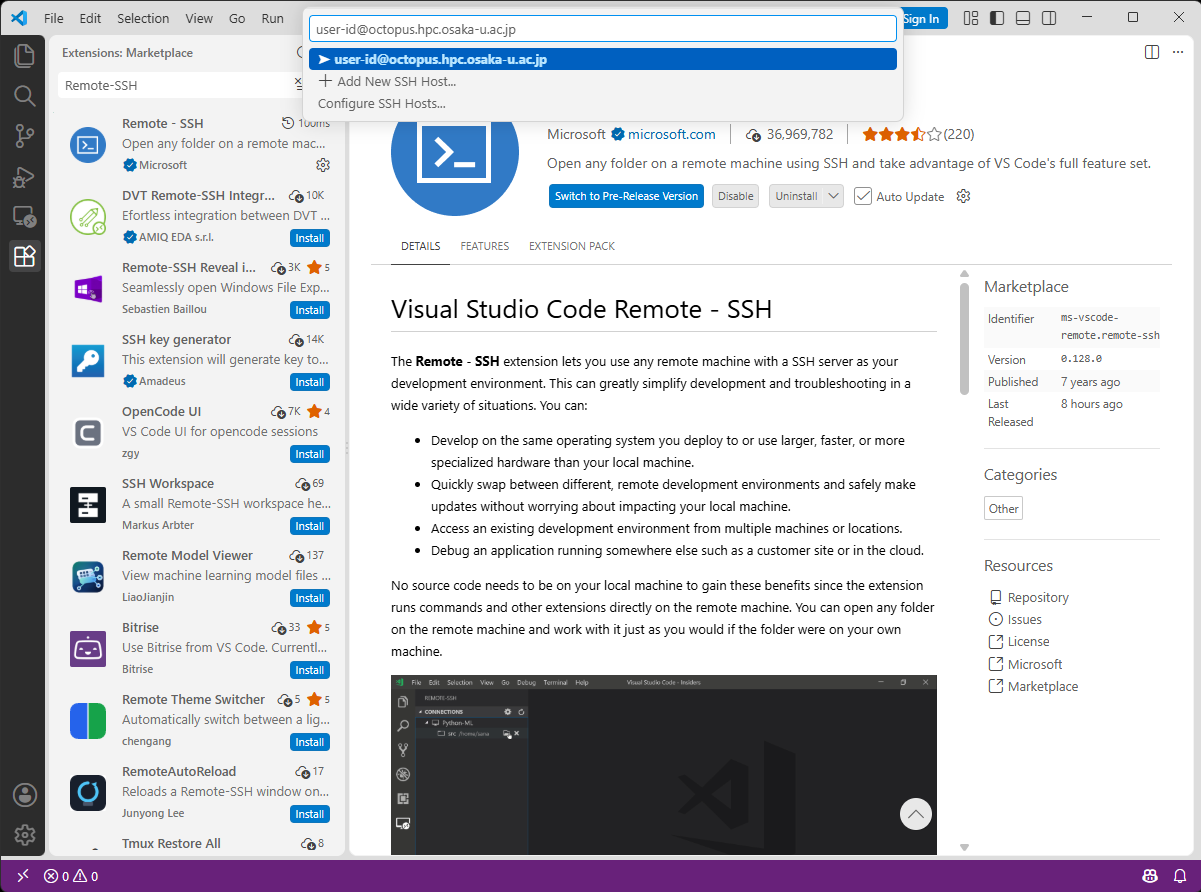

If you are not using an SSH configuration file, directly specify "USER_ID@octopus.hpc.osaka-u.ac.jp".


If you are prompted to select the operating system of the remote host when connecting for the first time, select Linux.


(3) Enter Your Password

An authentication screen or login terminal will appear. Enter your password and the one-time password for two-factor authentication.

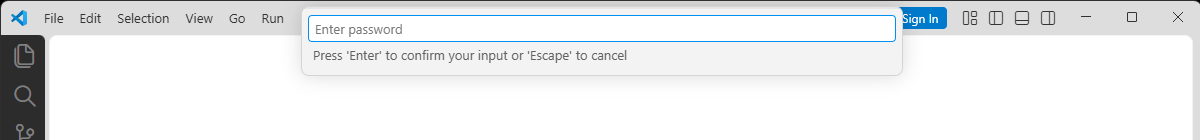

If the input field displays "Enter password", enter your password.
If the input field displays "Enter verification code", enter the one-time password for two-factor authentication.
Note: The one-time password is updated every 30 seconds. Be sure to enter the latest one-time password when connecting.
Note: You may be prompted to enter your password or one-time password multiple times during the connection process. If this occurs, follow the on-screen instructions and enter the requested information again.



(4) Connection Complete

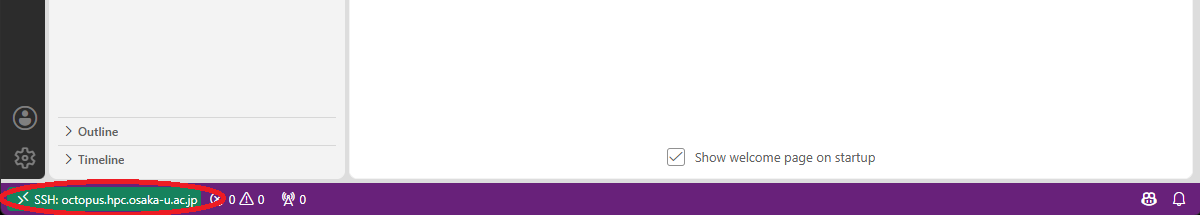

Once authentication is successful, VS Code will connect to the remote environment. When the connection is complete, the connected remote host will be displayed in the lower-left corner of VS Code.
For example, if "SSH: OCTOPUS" or "SSH: octopus.hpc.osaka-u.ac.jp" is displayed, the Remote - SSH connection to OCTOPUS has been successfully established.



Opening Files on OCTOPUS

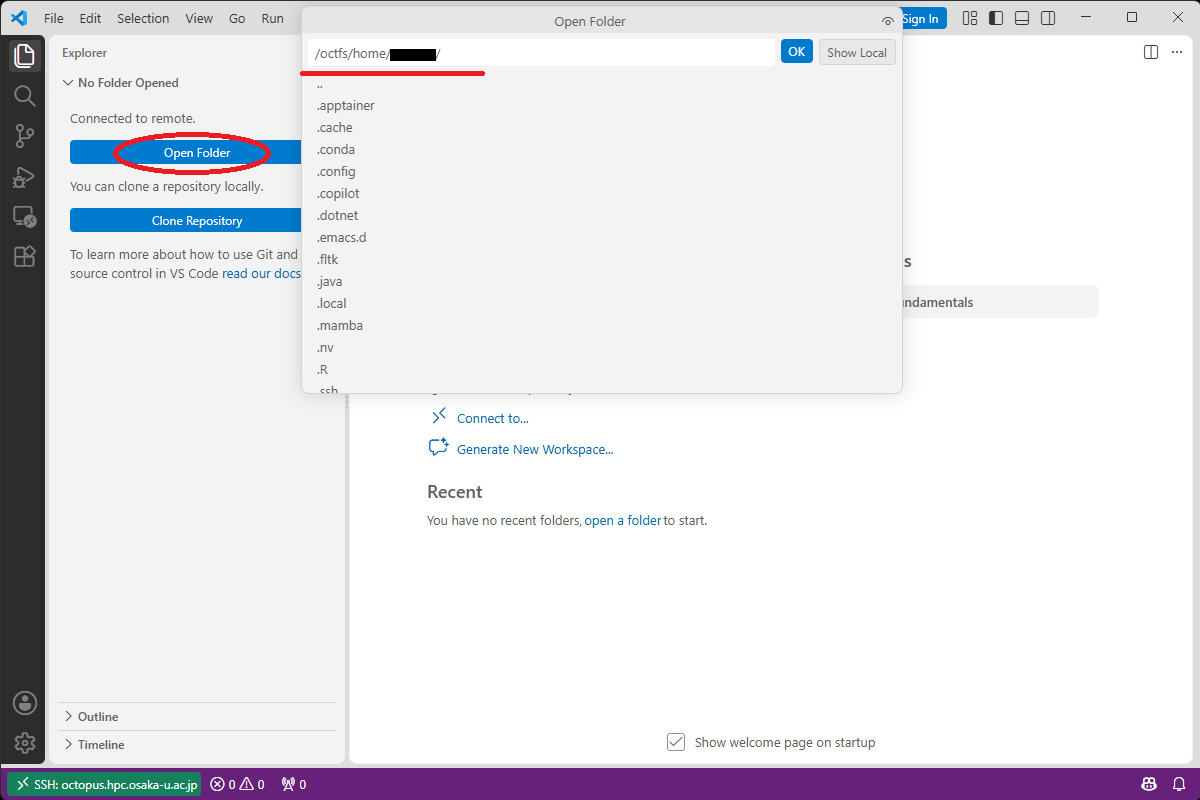

Once the connection is established, select File → Open Folder... from the VS Code menu. Select the directory on OCTOPUS that you want to edit.
If you open your home directory, you can directly edit the files in that directory from the Explorer in VS Code.



Using the VS Code Terminal

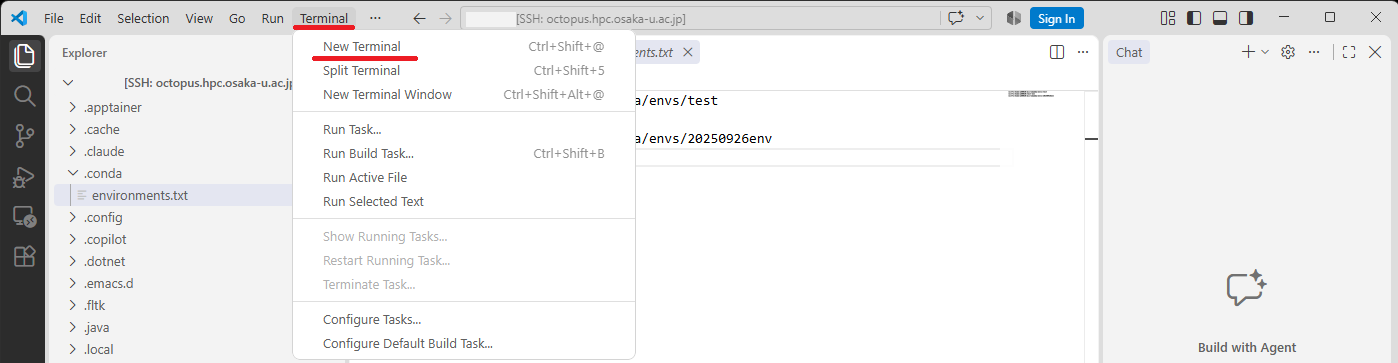

While connected to OCTOPUS via Remote - SSH, select "Terminal → New Terminal" to open a terminal on OCTOPUS within VS Code.
From this terminal, you can run Linux commands and submit/check jobs in the same way as when logging in via regular SSH.
Please do not run computationally intensive processes directly on the frontend node. Use the job scheduler instead.



Disconnecting

When you have finished your work, click "SSH: OCTOPUS" / "SSH: octopus.hpc.osaka-u.ac.jp" displayed in the lower-left corner of VS Code.
Select "Close Remote Connection" from the displayed menu to terminate the Remote - SSH connection to OCTOPUS.
